iBwave DesigniBWAVE DESIGN

THE INDUSTRY SOFTWARE STANDARD BEHIND OVER 100,000 CELLULAR & WI-FI NETWORKS WORLDWIDE.

So many indoor wireless networks to be designed, so little time. But with iBwave Design, the industry standard for designing indoor wireless networks, your network project lifecycle is streamlined so you can design and deliver wireless networks smarter and faster than ever before. Import layout plans, design using a database of 22,953 parts, simulate your network in advanced 3D and easily produce key project reports. Over 900 companies around the world have trusted iBwave Design to deliver over 100,000 indoor wireless networks worldwide.


 GO TO iBWAVE DESIGN LITE    GO TO iBWAVE DESIGN ENTERPRISE

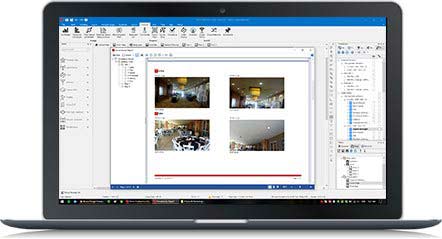

iBwave Design Screen





Without a doubt, iBwave spared us many hours of work. We not only built a network to support the 15,000 people that the stadium can accommodate but we also delivered it within record budget and timescales – within a third of the time when compared with conventional methods.

- Peter Liseborg, Senior Net Planner for Telenor Denmark -




Accelerate productivity, grow revenues

Automate your design process and deliver more projects in less time. Then watch as your project pipeline, revenues, and market share grow as a result.

Components Database (22,953 parts and counting)

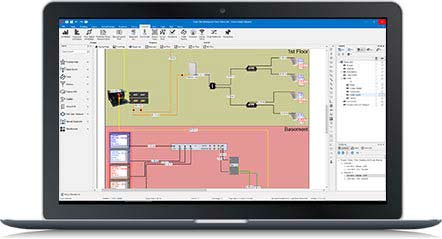

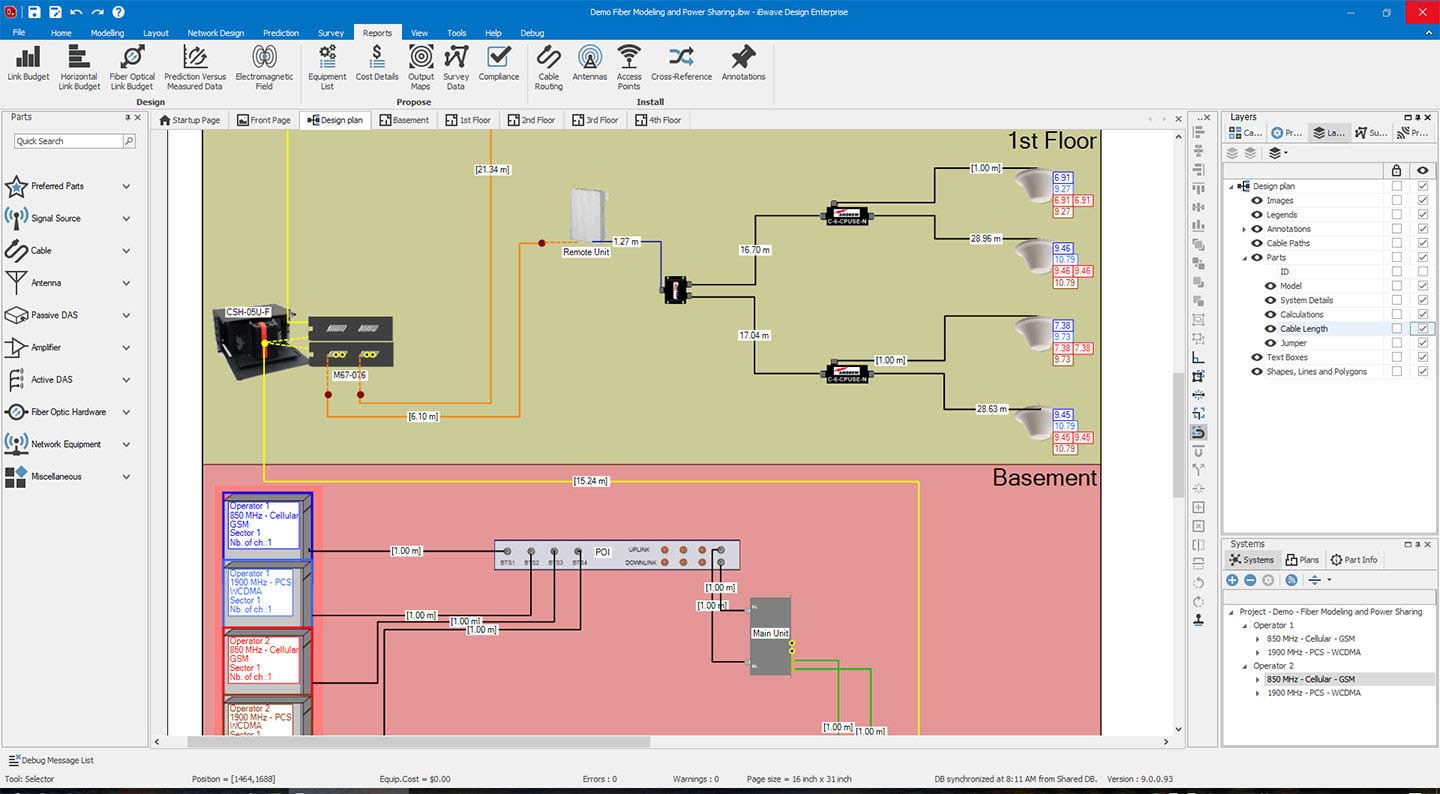

Drag and drop network parts onto your layout plans from our database of over 23,000 accurately-modeled network elements. Antennas, small cells, cables, access points, fiber hardware - if you design with it, we probably have it. And if not, we’ll quickly add it.

Design Automation

With automatic link budget calculations, automatic AP placement, automatic cable length calculations, and built-in error validation the network design process will be automated and the time it will take you to work on and deliver finished network projects will be drastically reduced.

Multi-technology support and asset sharing

Design DAS, Wi-Fi, small cells or public safety networks all in one solution and save time by sharing design assets layouts, modeled buildings - across all projects.

Layout plan importing

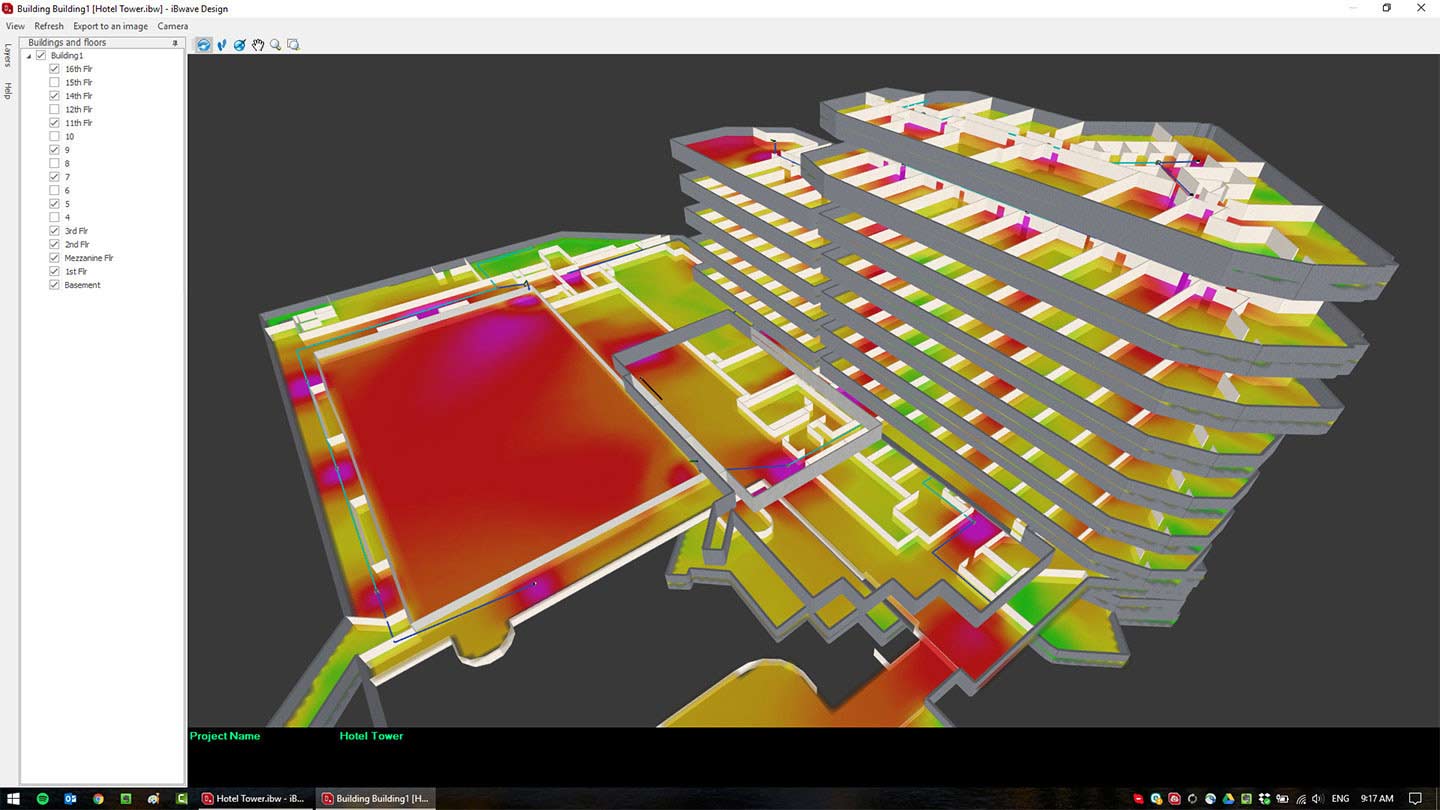

Quickly import your building layout plans from CAD, PDF or JPG files to design wireless networks. Easily assign materials to walls and surfaces and watch your buildings come to life in stunning 3D.






Ensure high-quality networks, win more contracts

Be confident the network quality you are delivering is the network quality your customer is expecting. And that your competition can’t do better.

Advanced Propagation

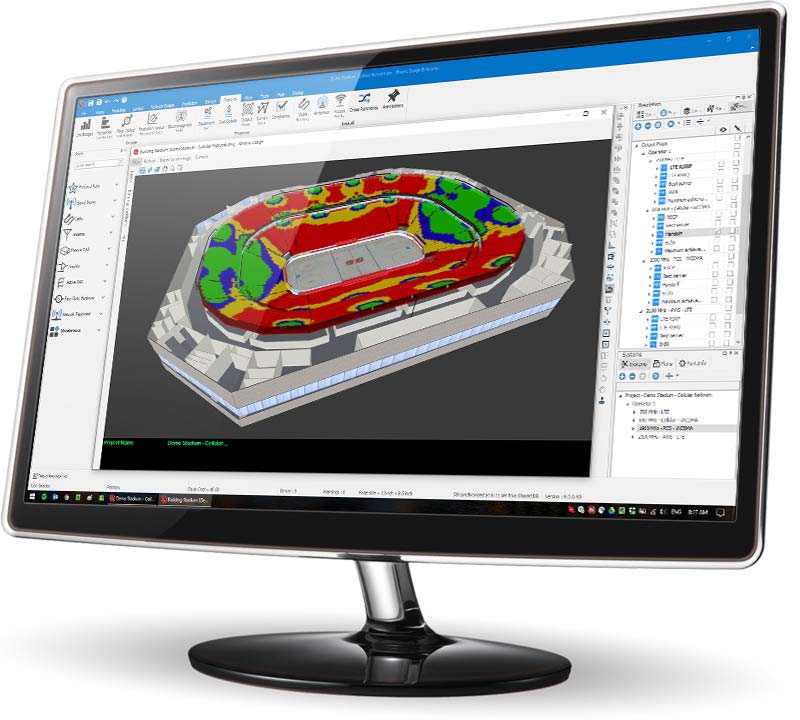

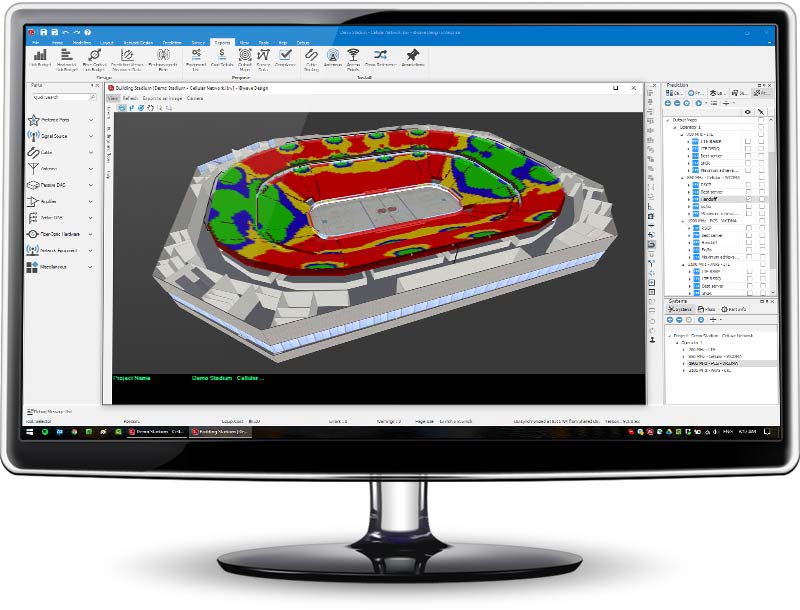

Use our advanced propagation engine to simulate network performance and verify that coverage, throughput and capacity will meet your customer’s requirements. View prediction results in advanced 3D to troubleshoot potential issues before deployment - so you don’t need to spend the time and money doing it after.

Automatic Error Checking

Catch and fix design errors before you deploy with automatic error checking. Establish thresholds, customize warnings and errors, and view errors on-screen as you design.

Output Maps and Compliancy Reports

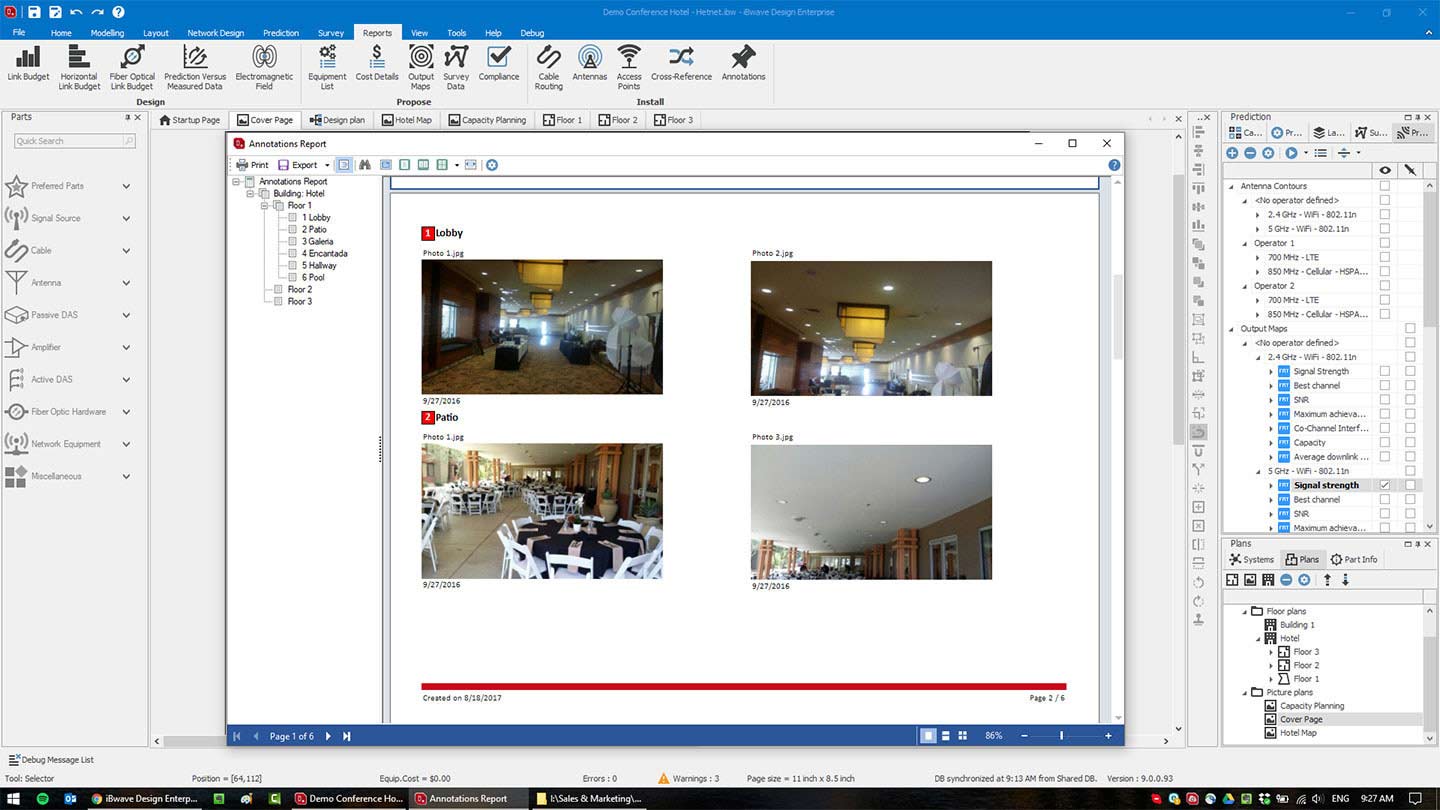

Impress your customer by sending them a detailed report to show them the predicted performance of the network and how it complies with their performance KPI’s. Include a 3D image of the customer’s building showing prediction results - or send them the design file so they can view it themselves in our free read-only software iBwave Viewer.






Optimize your designs, reduce your project costs

Eliminate the costly risk of deploying with more equipment than necessary by simulating your network before deployment and getting insight into the most optimal design.

Network Simulation

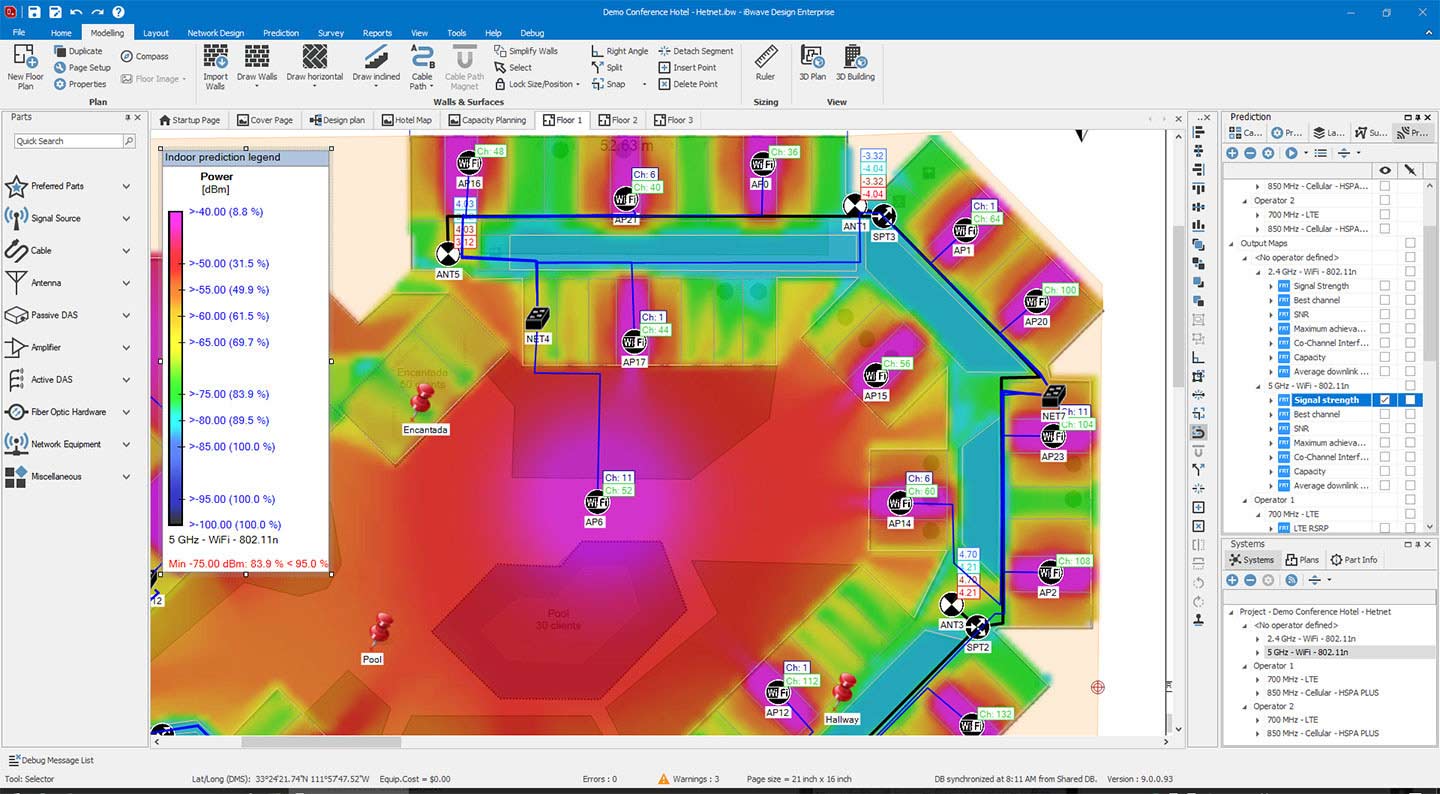

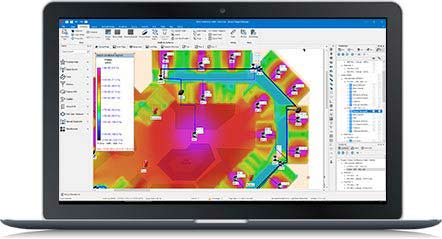

Simulate exactly how your network will perform with our advanced propagation engine. View RF coverage maps, throughput calculations and capacity analysis in 3D to ensure that the only equipment purchased and deployed is the equipment that is necessary.

Equipment list and project cost reports

Easily generate an equipment list and project cost report to get an accurate estimate of what will be required for deployment and how much the project will cost. Review detailed design information and associated costs and gain valuable insight into where designs and costs can both be optimized.






Standardize your documentation, save time

Ever spent too much time trying to review documentation you receive in various formats and trying to make sense out of it? iBwave Design solves that.

.ibw File Format

When you use iBwave Design you are joining an entire community of operators, OEMs, integrators, and wireless professionals from around the world who have all adopted the industry standard file format, .ibw. By using the same format as so many others, working on wireless network design projects with external stakeholders will be much easier. Reviewing documents will take less time and sharing files will be much simpler. Stakeholders who don’t have iBwave Design can download iBwave Viewer, our free read-only version of iBwave Design.

Customized Templates

Create project templates to standardize your project documentation with prediction legends, performance KPIs and other important RF parameters that enforce consistency between all the designs you have to review. No more headaches from trying to understand individual proposals or validate calculations that are sent in various formats.






Collaborate easier, deliver projects faster

Make working together with your team, your customer, and other project stakeholders easy.

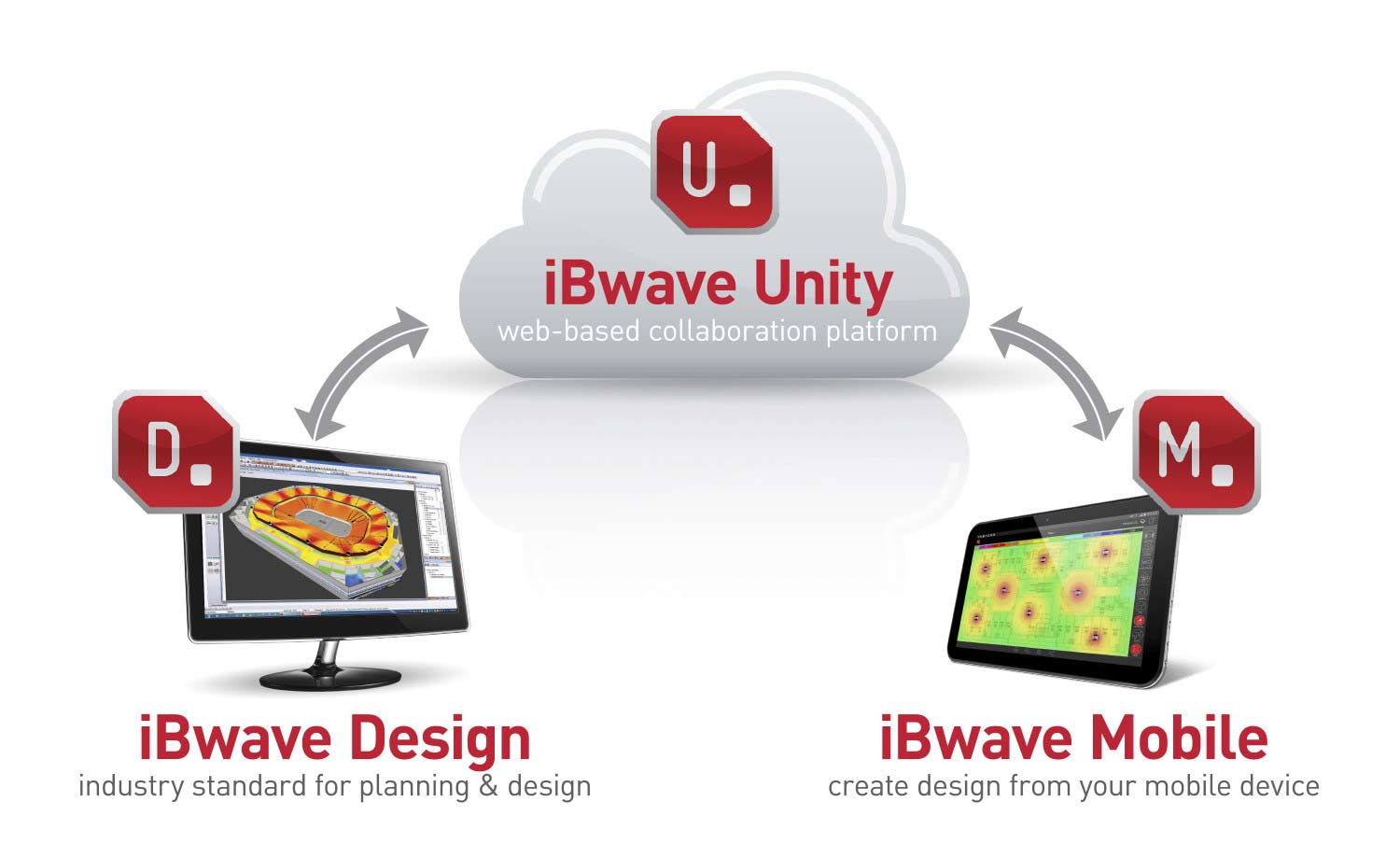

iBwave Mobile Integration

iBwave Design is seamlessly integrated with our mobile apps to streamline the wireless network design process from site walk to final delivery. Have a field team collect measurements and start a preliminary design on-site with iBwave Mobile and then save the information to the cloud where the office design team  can enhance and finish the design with iBwave Design.

iBwave Unity Integration

With integration to iBwave Unity, you have the ability to manage all of your sites and projects from a single location. Create a site once, share assets across projects, and always be synchronized with other members of your team with iBwave Drive. Easily set project tasks, assign resources and provide accurate project estimates. Track your projects from start to finish, always staying in sync. And most importantly, have the comfort knowing that in case of disaster or unforeseen outages, your project files and documentation can be quickly recovered.

iBwave Viewer

Make it easy for your customers and other project stakeholders to view designs by providing them with iBwave Viewer, our free read-only simplified version of iBwave Design. Customers and stakeholders can easily open design files, run their own reports and view designs with prediction in 3D.






Discover the right version for you.

Not every wireless project you do will require the same RF design capabilities. Find the version of iBwave Design that works best for you.

iBwave DesigniBwave Design Lite

The best choice if you need an entry-level in-building wireless network design software for small to medium size projects.

PASSIVE DAS
(single sector)
OFF-AIR REPEATER
SOLUTIONS
NON-FIBER
PUBLIC SAFETY

Recommended for:

SINGLE BUILDING
ARCHITECTURES
ENTERPRISE DESIGNS
COVERAGE BASED DESIGNS
GO TO iBWAVE DESIGN LITE  CONTACT US

iBwave DesigniBwave Design Enterprise

The best choice if you need an advanced in-building wireless network design software for larger and more complex projects.

PASSIVE DAS
AND ACTIVE DAS
SMALL
CELLS
Wi-Fi
ANY PUBLIC
SAFETY

Recommended for:

COMPLEX BUILDING
ARCHITECTURES

LARGE, HIGH-CAPACITY
VENUES

THROUGHPUT AND
CAPACITY ANALYSIS
GO TO iBWAVE DESIGN ENTERPRISE  CONTACT US





Product Feature comparison   View technical requirements     View full PDF comparison table

SOFTWARE REQUIREMENTS



HARDWARE REQUIREMENTS

Minimum
  • Processor: > 2.0 GHz
  • Operating System: Windows Vista, Windows 7, Windows 8 or Windows 10
  • Memory: 2 gigabytes (GB) of RAM
  • Hard Disk: 500 MB (including Microsoft .NET Framework installation)
  • Display: 1024 x 768, 24 bits
Recommended (for large projects)
  • Processor: Intel i7 Processor 2600 (3.4 Ghz) or more
  • Operating System: Windows 7 64-bit, Windows 10 64-bit
  • Memory: 12 gigabytes (GB) of RAM or more
  • Hard Disk: 500 MB (including Microsoft .NET Framework installation)
  • Display: 1680 x 1050, 32 bits
  • Video Card with 3D support and at least 256 Mb
* iBwave Design does not allow the usage of multiple simultaneous Terminal Server sessions.
* iBwave Design will not run under multiple simultaneous Terminal Servers
* iBwave Design product line is not supported on virtual environments.

  iBWAVE DESIGN LITE iBWAVE DESIGN ENTERPRISE
Supported wireless technology
Cellular (4G, 3G, 2G)
Wi-Fi
Public Safety
Others
Supported architecture
Passive DAS
Off-air repeaters
Small Cells & Access Points
Fiber backhaul
Active DAS
Wi-Fi
Small Cells
Public Safety
Building modeling
Walls
Horizontal surfaces
Inclined surfaces
Multiple buildings
Design automation
Database of components No active DAS, No fiber cables
Coverage propagation maps Propagation module Propagation module
Optimization maps Optimization module
Collection tools integration Collection module
Project documentation & reports Limited Full set
  GO TO iBWAVE DESIGN LITE GO TO iBWAVE DESIGN ENTERPRISE

iBwave License Manager (ILM)
The better way to manage your iBwave Design licenses.

With iBwave Design, you have an option of 4 different license models, each one designed to accommodate licensing needs based on how many users you will have as well as the time zones you will need access to.

LICENSE TYPE WHAT DOES IT COVER? WHO USUALLY USES IT?
Single
  • 1 user can access a single iBwave Design license
  • 1 personal computer
  • Power user of iBwave Design who needs a dedicated license on his PC
Shared
  • Maximum 5 pre-assigned users
  • 1 user can access at a time
  • Restricted to one continent (Americas, EMEA, APAC)
  • Small to med companies
  • Companies without offices in more than one continent
Global
  • Maximum 10 pre-assigned users
  • 1 user can use at a time
  • Access to the iBwave License Manager portal
  • Not restricted geographically
  • Med to large organizations
  • International companies with offices in more than one continent
Citrix
  • Unlimited number of users
  • 1 user can access at a time
  • Must be used in Citrix environment
  • Large organization deploying software on Citrix for ease of installation and maintenance



Not sure which license is the right one for you? Contact your sales representative and we will help you figure it out.



About iBwave License Manager (ILM)

iBwave License Manager (ILM) gives you access to a web-based portal to view and manage all of your licenses for iBwave Design.

This makes it easy to optimize the usage of your iBwave Design licenses, ensuring that managing who has access to your limited number of licenses is a quick and painless process.

Here are more details of what ILM provides you:

  • A list of all your iBwave Design licenses
  • The ability to easily add, remove or block users associated to your Global licenses
  • Reports to track license utilization and blockage statistics
