propagation module

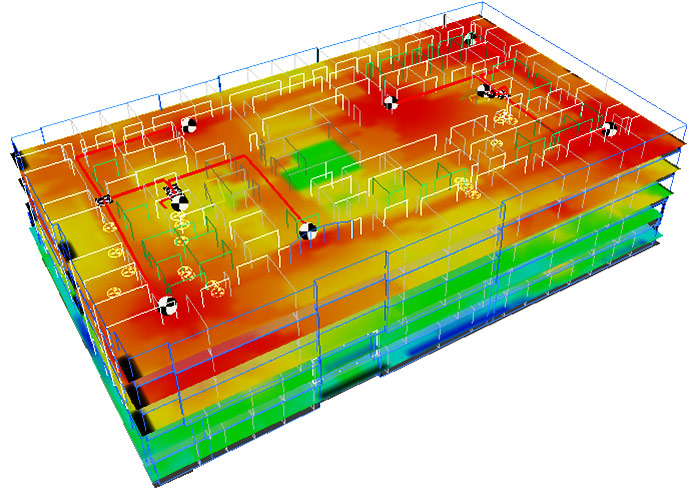

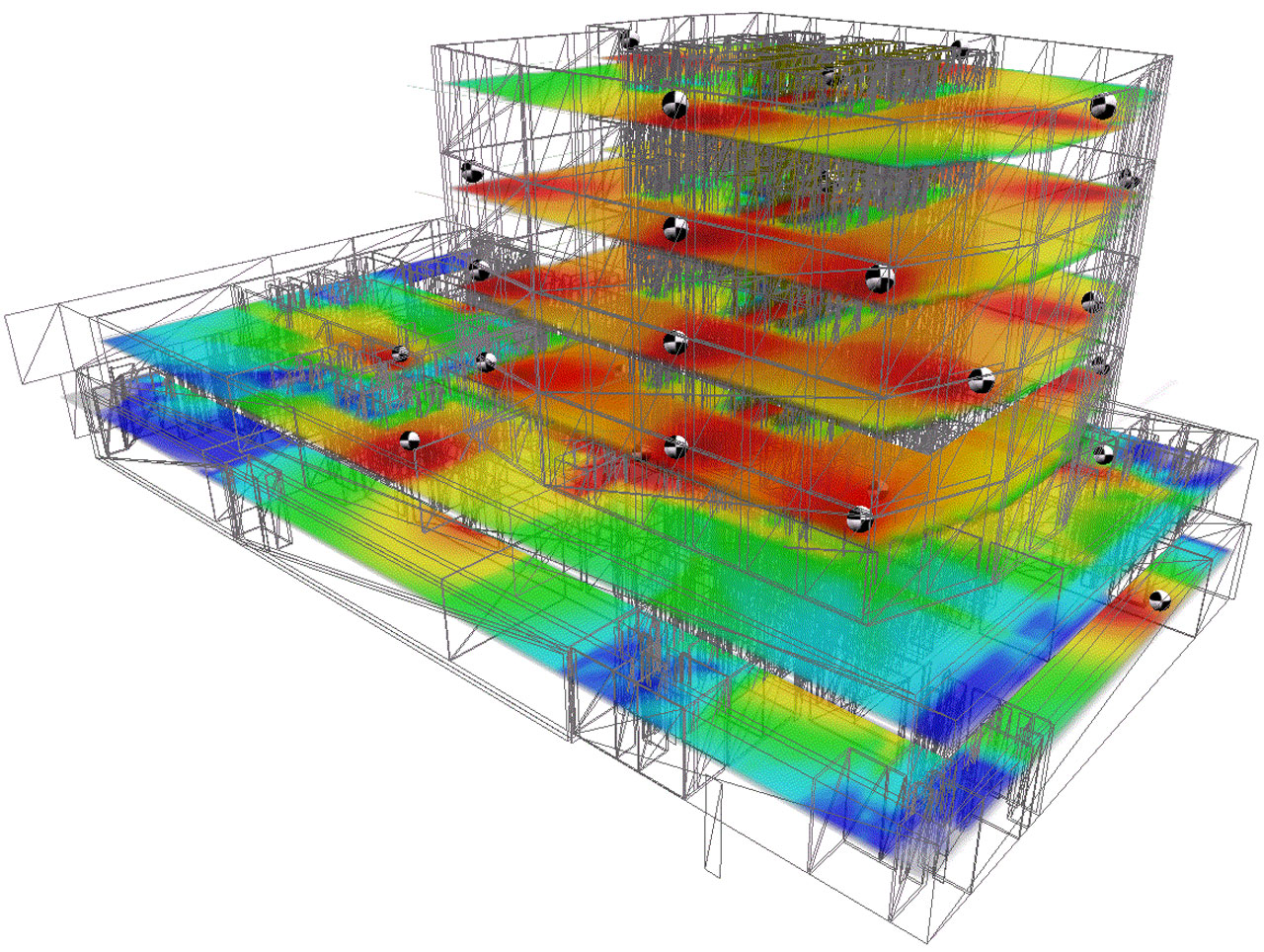

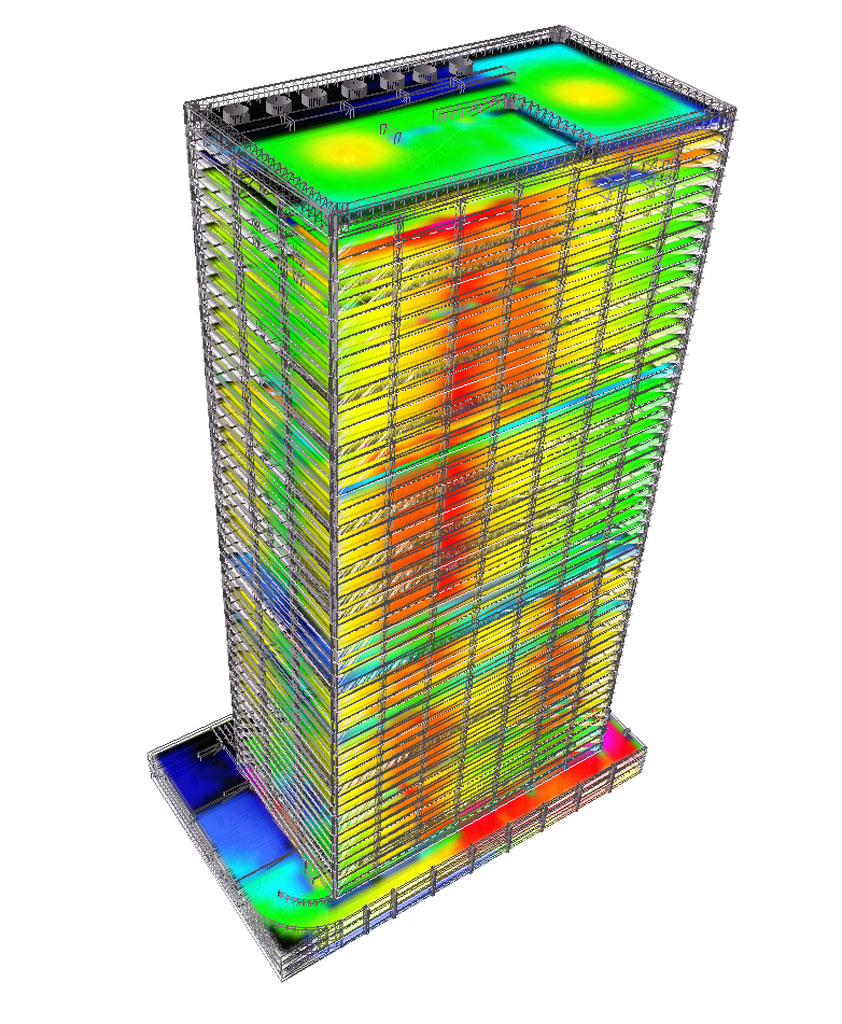

The Propagation Module is an add-on module to iBwave Design that delivers advanced 3D modelling and indoor and outdoor propagation prediction on your floor plan and building structure to simulate the network coverage in different areas of the building.

VIEW MODULE SCREENSHOTS

Click on each image for a larger view.

Reduce Costly Site Surveys

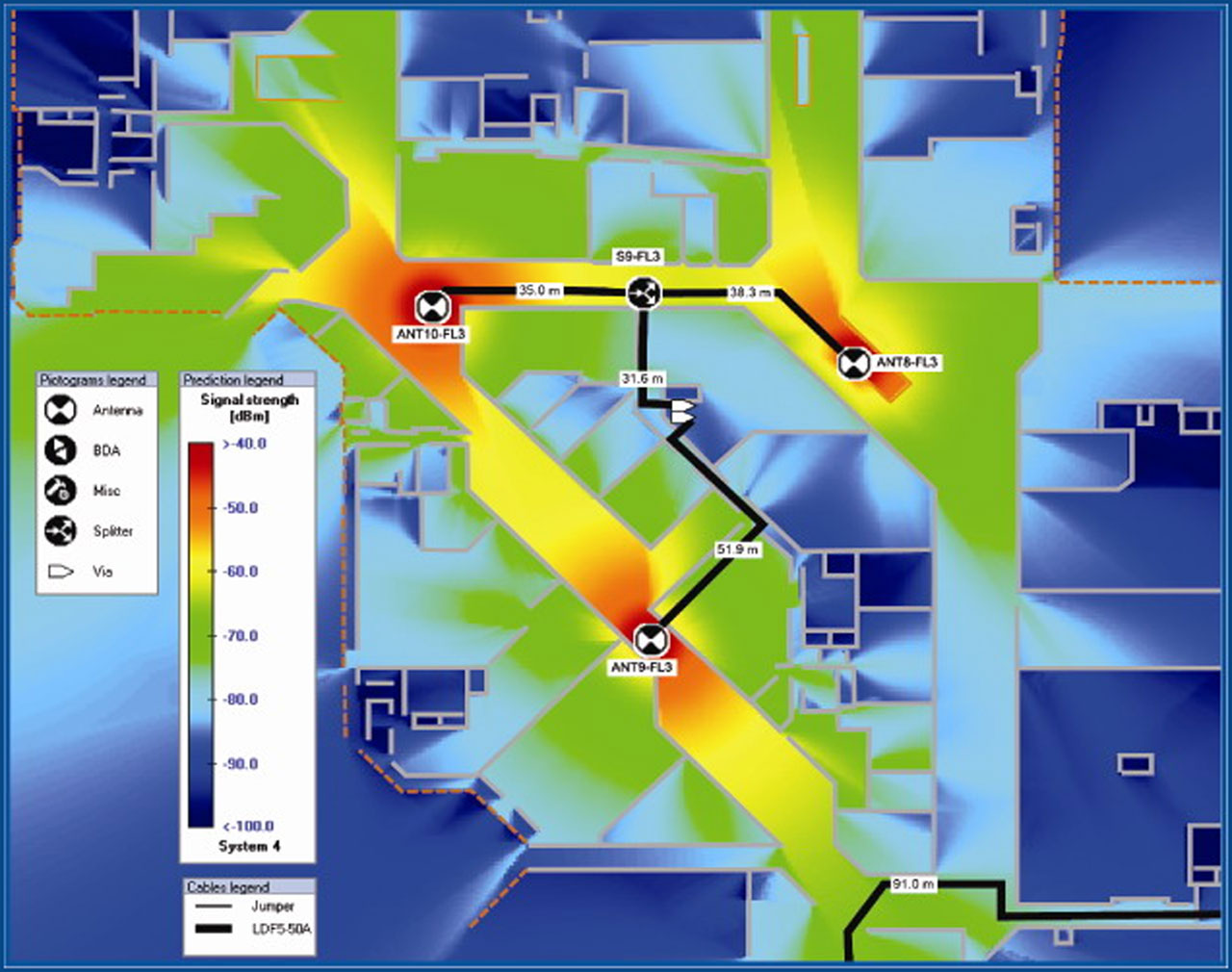

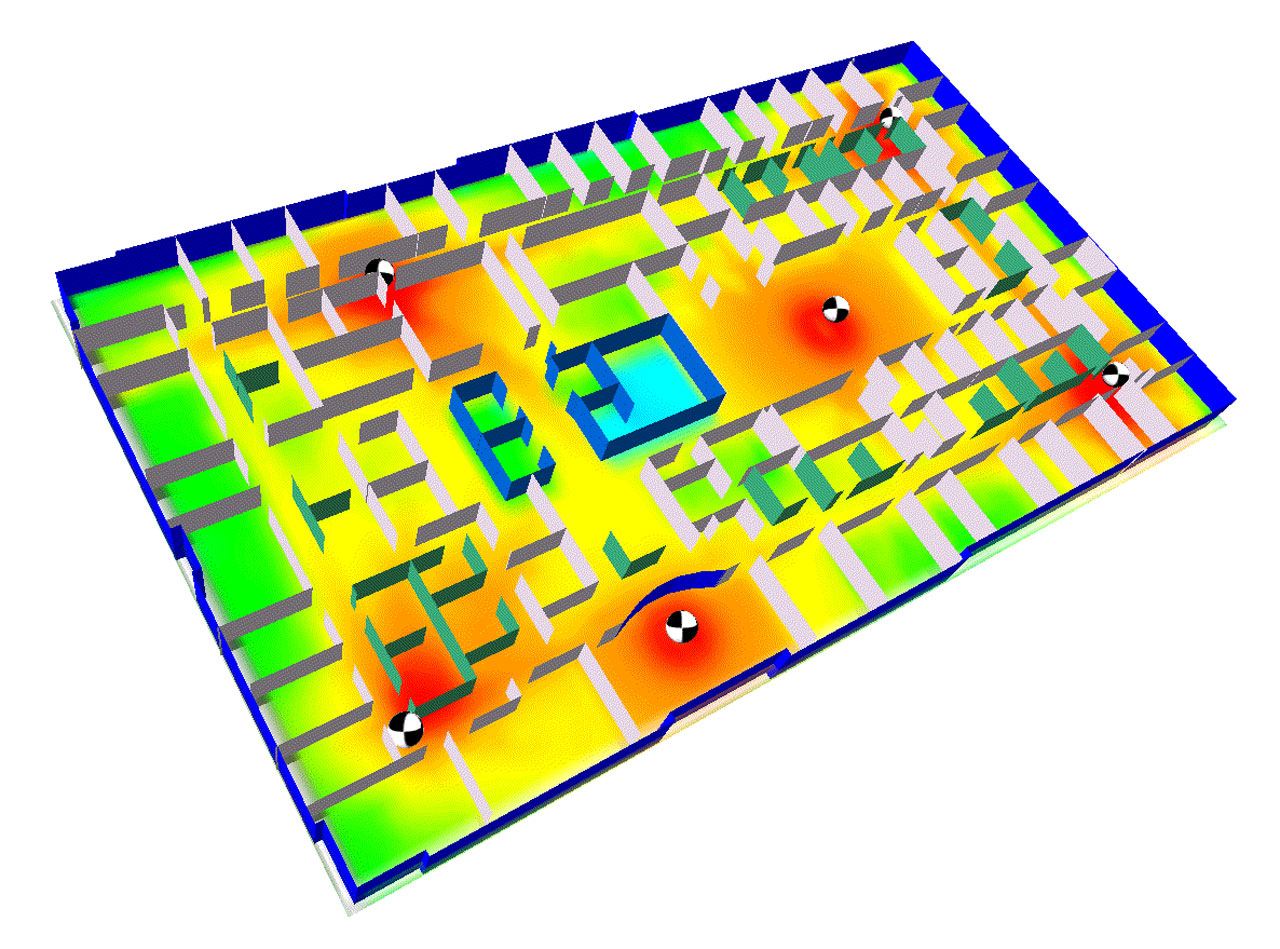

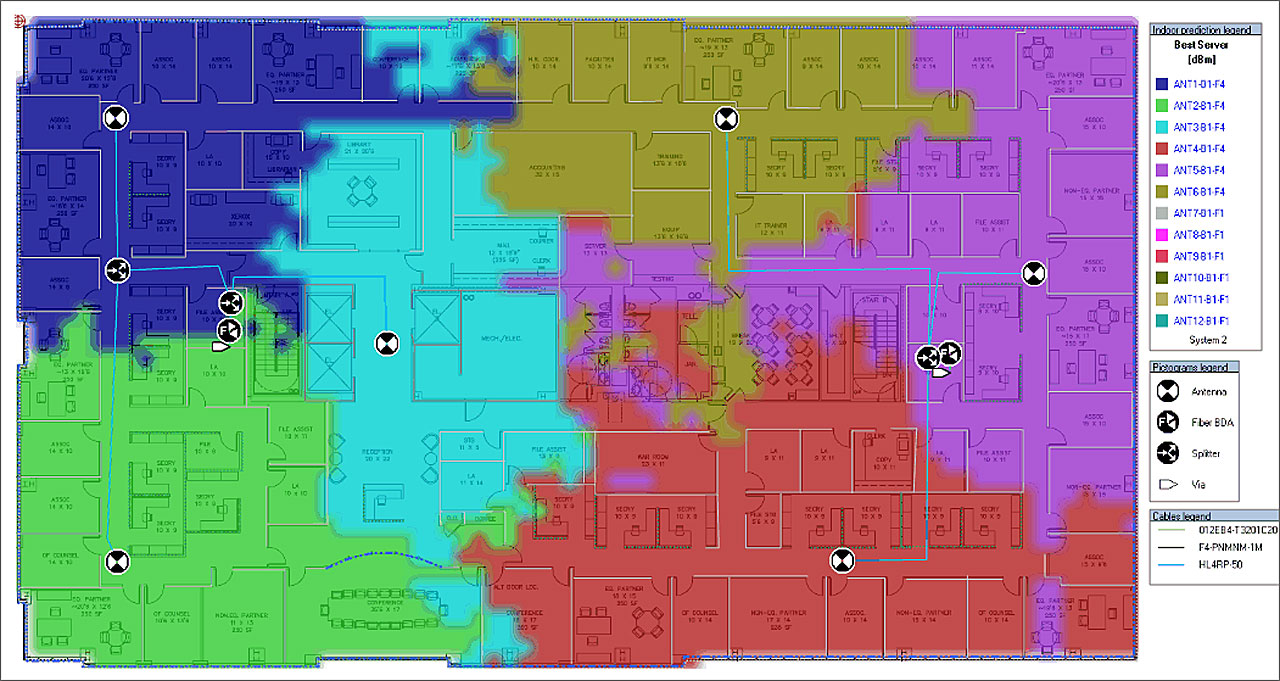

View accurate propagation results from antennas and radiating cables. Produce precise prediction results faster than ray tracing models using dominant path modelling. Increase accuracy by calibrating the prediction model with survey data.

Multi-Technology View
Simultaneously compare propagation behaviours between different technologies and frequency bands.

Instant Power Update
Automatically visualize and predict antenna footprints in 3D as power updates “from DAS” are made.

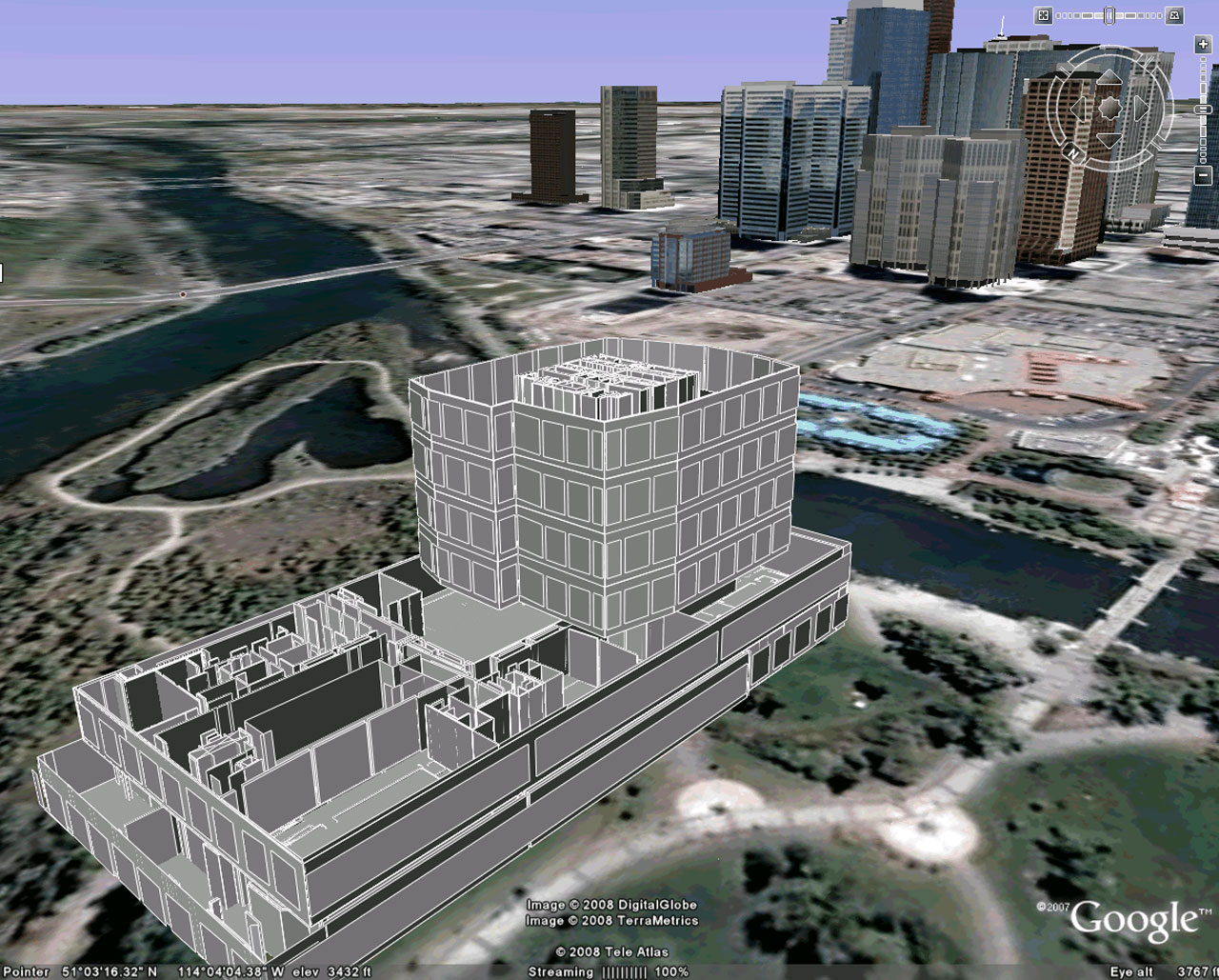

New Outdoor Capability

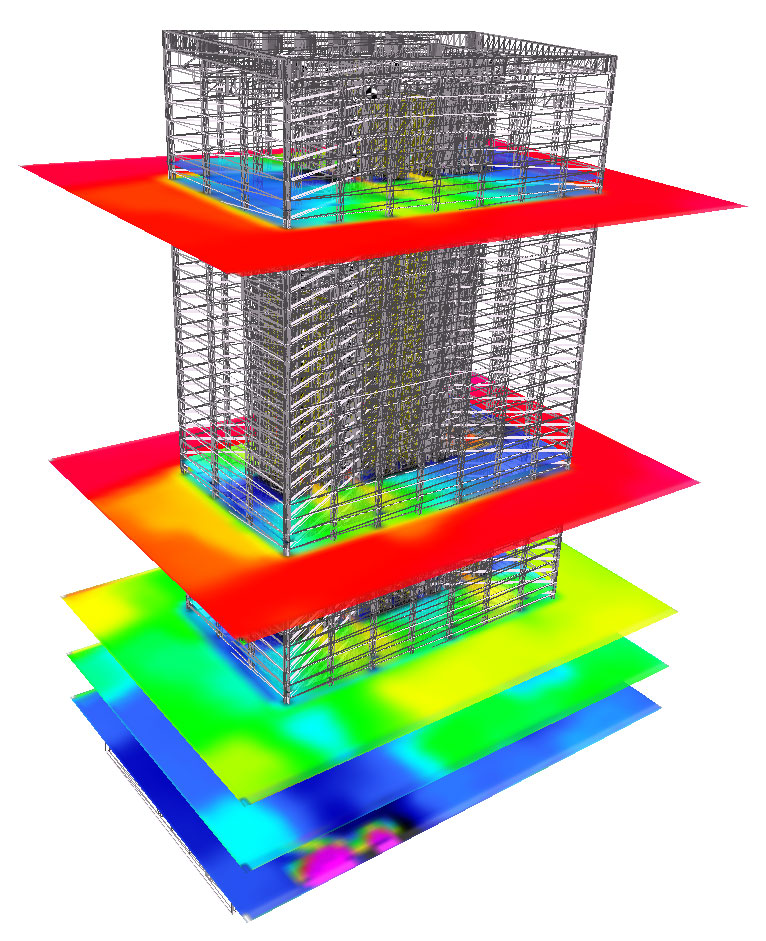

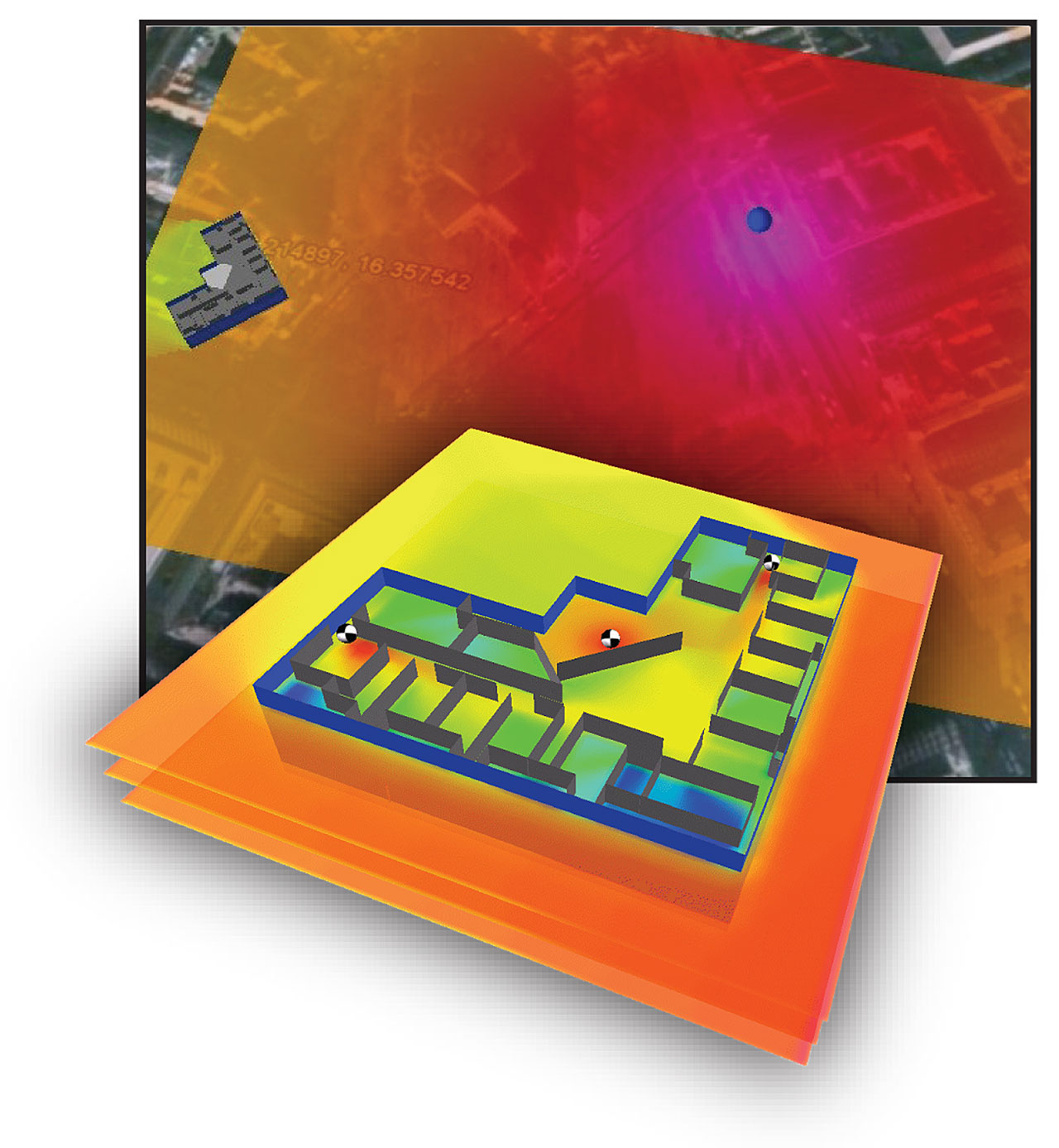

Import the outdoor macro layer coverage footprint into iBwave Design to have a single view of a building’s coverage.

The indoor/outdoor feature is compatible with the industry-leading outdoor wireless network planning software Mentum, AIRCOM International and Forsk through AWE Communications and Siradel's 3D propagation engines.

Powered by AWE Communications
