Modeling module
The Modeling Module delivers advanced features that allow draughtsmen to add more details to building modelling such as selecting floor and wall materials, generating 3D floor plans and building models, and exporting buildings to Google Earth.

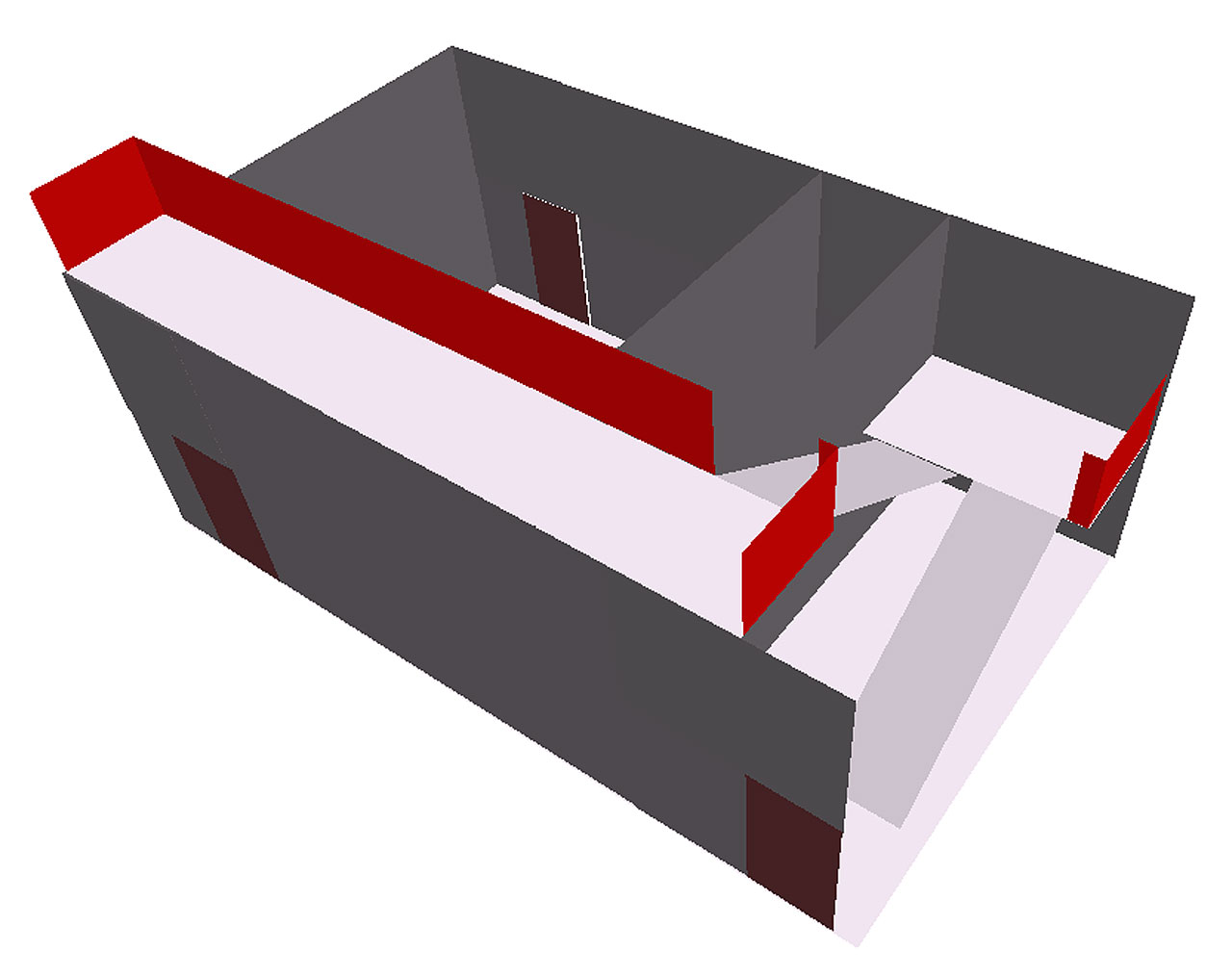

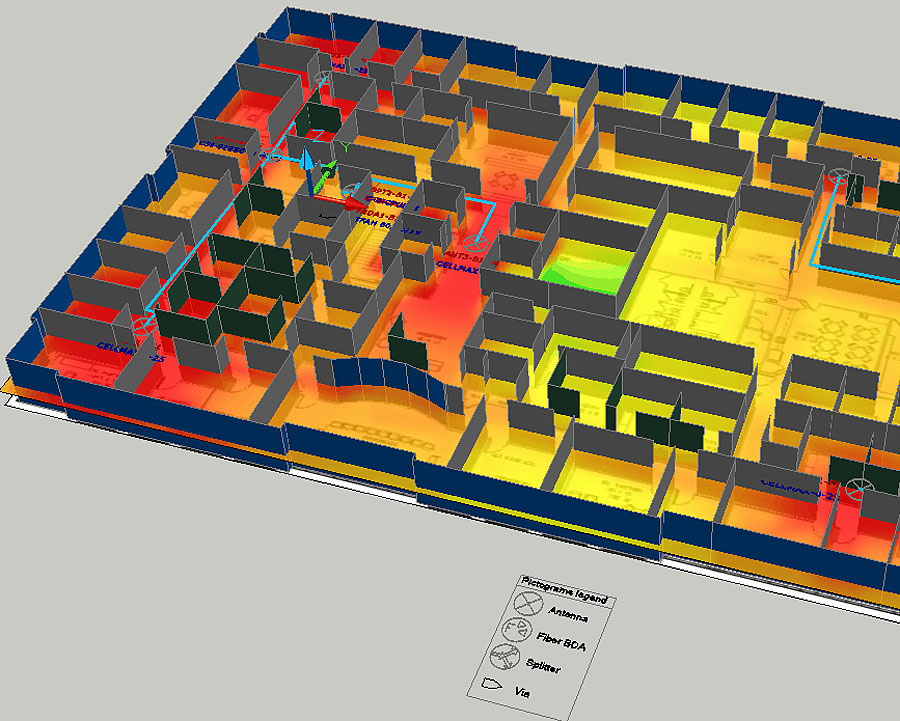

VIEW MODULE SCREENSHOTS
Click on each image for a larger view.
|
Technical features
Building modeling
• Import floor plans from .dwg, .dxf, .jpeg, .bmp, .tiff, .gif or .pdf files
• Create and delete building entity
• Modify building properties
• Draw walls and assign materials from built-in list
• Manipulate walls and surfaces and set wall height
• Draw horizontal and inclined walls and assign materials from built-in list
• Calculate length and area
• Design plan organizer
• Show floor plan and building in 3D
• Export building to Google earth
CAD export
• Export files to .dxf format |
|
|
|
|
|
|
|
|
|
|
|
|
|
